DIRTY Spherical Galactic Environment Calculations

The DIRTY model ( Gordon et al. (2001), Misselt et al. (2001), Law et al. (2018), ) was used to investigate the impact of non-homogeneous dust distributions on the extinguished and scatter light from systems of stars and dust. The DIRTY model was the first to investigate such effects in full 3D. Witt & Gordon (1996) investigated the simple case of a star surrounded by a sphere of dust, where the dust was distributed homogeneously or with clumps with varying sizes, filling factors, and clump/inter-clump density ratios. Witt & Gordon (2000) used Spherical Galactic Environments (SGEs) to investigate how clumpy dust impacted the wavelength dependence of attenuation on regions of galaxies. The SGEs were introduced by Witt, Thronson, and Capuano (1992) where only smooth (non-clumpy) dust distributions were studied.

CLOUDY, DUSTY, and SHELL SGEs

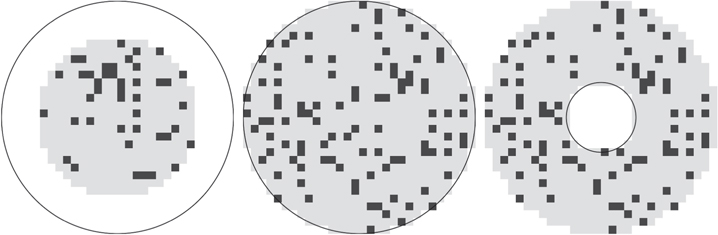

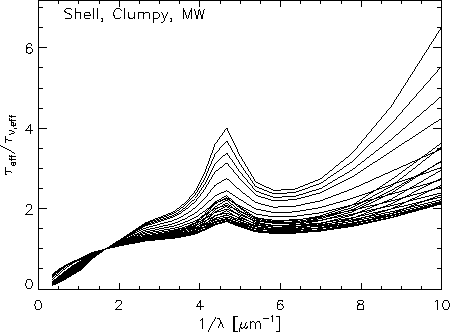

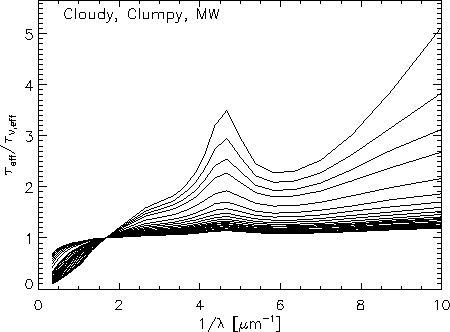

Cuts through CLOUDY, DUSTY, and SHELL SGEs (left to right) with a clumpy dust distribution.

Original Tables

Tables 2-4 of Witt & Gordon (2000).

Table 2Table 3Table 4

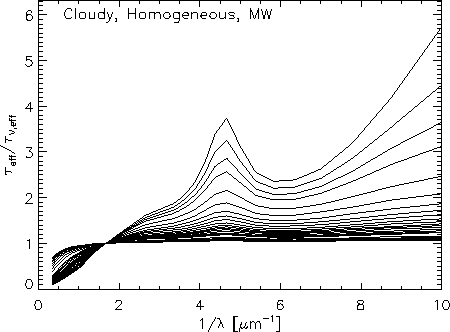

DUSTYSHELLCLOUDY
ASCII ASCII ASCII

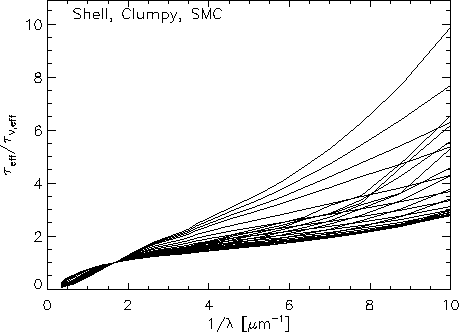

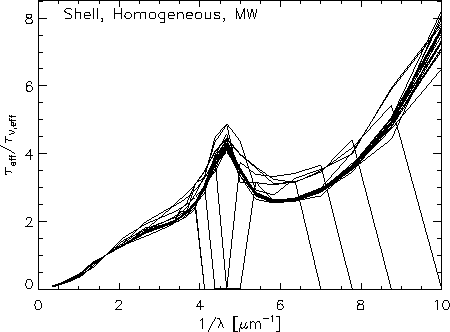

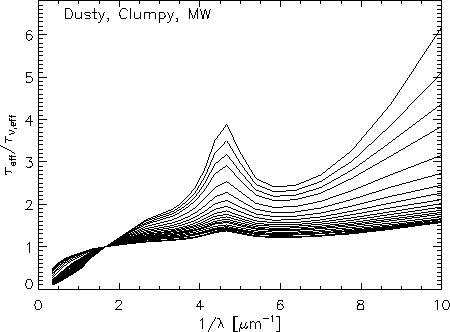

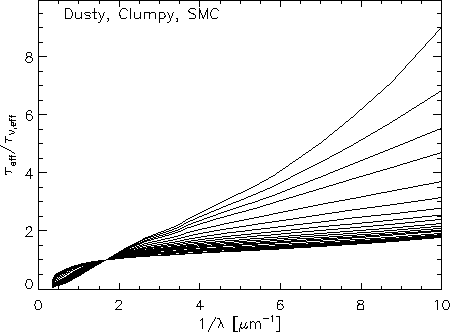

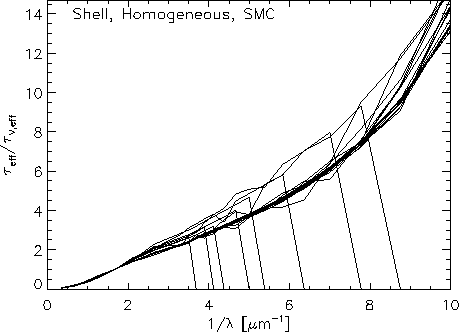

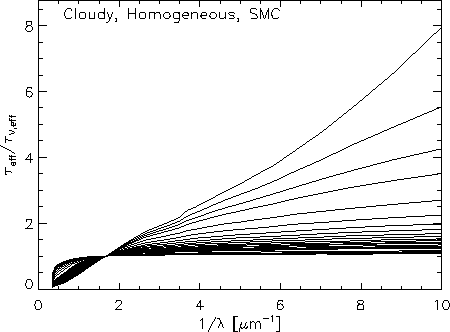

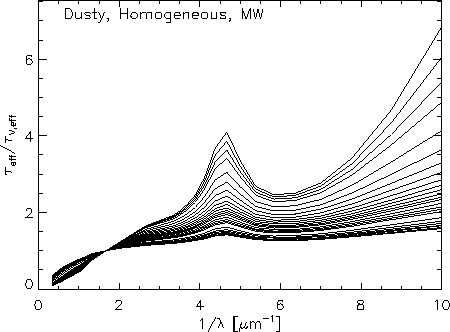

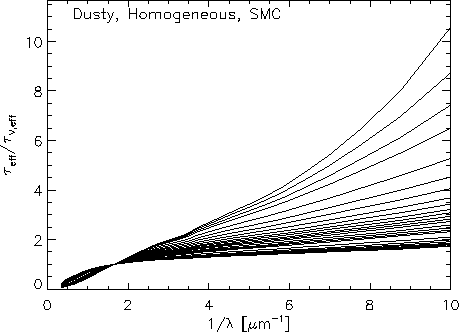

attenuation plot attenuation plot
attenuation plot attenuation plot		 attenuation plot attenuation plot
attenuation plot attenuation plot		 attenuation plot attenuation plot
attenuation plot attenuation plot

Full Original Data

Full original data for Witt & Gordon (2000) with an expanded set of dust density ratios. The format of these files is different than those in Tables 2-4 given above.

SGE, dust-typek2/k1 (density ratio)
SHELL, MW 1.000 (homogeneous) 0.500 0.100 0.050 0.010 (clumpy) 0.005 0.001
SHELL, SMC 1.000 (homogeneous) 0.500 0.100 0.050 0.010 (clumpy) 0.005 0.001
DUSTY, MW 1.000 (homogeneous) 0.500 0.100 0.050 0.010 (clumpy) 0.005 0.001
DUSTY, SMC 1.000 (homogeneous) 0.500 0.100 0.050 0.010 (clumpy) 0.005 0.001
CLOUDY, MW 1.000 (homogeneous) 0.500 0.100 0.050 0.010 (clumpy) 0.005 0.001
CLOUDY, SMC 1.000 (homogeneous) 0.500 0.100 0.050 0.010 (clumpy) 0.005 0.001

Expansion to LMC2 type dust and more SHELL optical depths

Expansion to include LMC2 type dust and a larger range of optical depths for the SHELL SGE. The format of these files is different than those in Tables 2-4 given above.

SGE, dust-typek2/k1 (density ratio)
SHELL, LMC2 1.000 (homogeneous) 0.010 (clumpy)
SHELL, SMC 1.000 (homogeneous) 0.010 (clumpy)
CLOUDY, LMC2 1.000 (homogeneous) 0.500 0.100 0.050 0.010 (clumpy) 0.005 0.001

Weingartner & Draine (2001) dust grain properties

These model runs use the Weingartner & Draine 2001, ApJ, 548, 296 dust grain models for MW, LMC2, and SMC dust. The dust grain model scattering parameters were downloaded from Bruce Draine's homepage. They also cover a wider range of wavelengths (0.05 - 3 microns) than the Witt & Gordon (1996) models which used empirically determined dust scattering properties.

The inputs are significantly different than those used in the original tables and are probably not as valid as those used in that paper. Dust grain models do not use the known dust scattering properties as constraints and, thus, do not do a good job reproducing them. It is not clear which dust grain model inputs should be used, especially in the case of SMC or LMC type dust or at wavelengths where the empirical work has not been done. For the MW runs, the empirical dust grain inputs (original calculations) are the recommended inputs. More work is obviously needed on both empirically determining dust grain scattering inputs in other galaxies as well as improving the dust grain models to include the empirical work on dust scattering properties.

SGE, dust-typek2/k1 (density ratio)
SHELL, MW 1.000 (homogeneous) 0.500 0.100 0.050 0.010 (clumpy) 0.005 0.001
SHELL, LMC2 1.000 (homogeneous) 0.500 0.100 0.050 0.010 (clumpy) 0.005 0.001
SHELL, SMC 1.000 (homogeneous) 0.500 0.100 0.050 0.010 (clumpy) 0.005 0.001
DUSTY, MW 1.000 (homogeneous) 0.500 0.100 0.050 0.010 (clumpy) 0.005 0.001
DUSTY, LMC2 1.000 (homogeneous) 0.500 0.100 0.050 0.010 (clumpy) 0.005 0.001
DUSTY, SMC 1.000 (homogeneous) 0.500 0.100 0.050 0.010 (clumpy) 0.005 0.001

Clayton et al. (2003) dust grain properties

These model runs use the Clayton et al. (2003) dust grain models for MW, LMC2, and SMC dust. They also cover a wider range of wavelengths (0.08 - 1000 microns) than the Witt & Gordon (2000) models which used empirically determined dust scattering properties.

The inputs are significantly different than those used in the original tables and are probably not as valid as those used in that paper. Dust grain models do not use the known dust scattering properties as constraints and, thus, do not do a good job reproducing them. It is not clear which dust grain model inputs should be used, especially in the case of SMC or LMC type dust or at wavelengths where the empirical work has not been done. For the MW runs, the empirical dust grain inputs (original calculations) are the recommended inputs. More work is obviously needed on both empirically determining dust grain scattering inputs in other galaxies as well as improving the dust grain models to include the empirical work on dust scattering properties.

geometry, dust-typek2/k1 (density ratio)
SHELL, MW 1.000 (homogeneous) 0.500 0.100 0.050 0.010 (clumpy) 0.005 0.001
SHELL, LMC2 1.000 (homogeneous) 0.500 0.100 0.050 0.010 (clumpy) 0.005 0.001
SHELL, SMC 1.000 (homogeneous) 0.500 0.100 0.050 0.010 (clumpy) 0.005 0.001
DUSTY, MW 1.000 (homogeneous) 0.500 0.100 0.050 0.010 (clumpy) 0.005 0.001
DUSTY, LMC2 1.000 (homogeneous) 0.500 0.100 0.050 0.010 (clumpy) 0.005 0.001
DUSTY, SMC 1.000 (homogeneous) 0.500 0.100 0.050 0.010 (clumpy) 0.005 0.001
CLOUDY, MW 1.000 (homogeneous) 0.500 0.100 0.050 0.010 (clumpy) 0.005 0.001
CLOUDY, LMC2 1.000 (homogeneous) 0.500 0.100 0.050 0.010 (clumpy) 0.005 0.001
CLOUDY, SMC 1.000 (homogeneous) 0.500 0.100 0.050 0.010 (clumpy) 0.005 0.001
